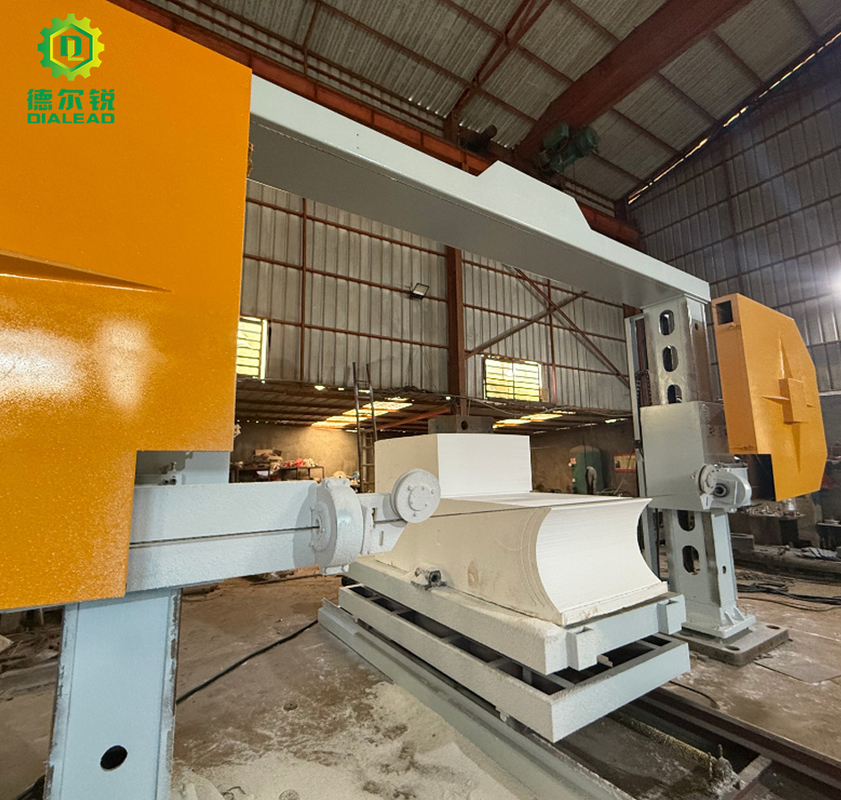

CNC Stone Profiling Wire Saw Cutting Machine with Rotary Table

CNC Stone Profiling Wire Saw Cutting Machine with Rotary Table

Function:The machine is mainly used for processing the profile of marble and granite. Such as:processing the arc slabs of different specifications, solid columns, hollow columns, large stone lines and English letter, etc.1,The movements of the machine are controlled by a Four axes CNC. Up -down is Y axis.trolley movement is X axis.left guide wheel rotation is A xis. right guide wheel rotation is B axis.The data can be input directly in the CNC When you cut standard slabs or by operator program with G code. If there are any complex graphics, it can draw graphics with AutoCAD in DXF format and put it on USB interface. When it is put on the USB interface,the cnc system can read the DXF format and automatically generate the program.
2,The machine is provided with steady structure, including top beam,two upright column,square box,hydraulic tensioning unit,two big flywheel. Left side install a driven big flywheel and hydraulic tensioning device. hydraulic tensioning device controls diamond wire tension or loosen, at the same time keep the diamond wire pressure. Right side install a driving flywheel and main motor, the driving flywheel is driven by main motor with belt.it can control the speed of wire between 0-40m/s via inverter.the machine can cut different kind of stone material.
3,In order to reducing the diamond wire wear and keeping the diamond wire steady , the machine are equiped with four guide wheels (Diameter: 200mm). guide wheels are protected by rubber liners which can be easily changed once they are worn out.guide wheel rotate according to cutting shape,controled by step motor.
4,According to the size of the stone,we equip with an electric system for bringing closer the guide wheels that is to adjust the cutting width as stone size, reducing the arch value when cutting with diamond wire .
5,The table of trolley is 2000 x 2000 mm and has a maximum capacity of 20 Ton. it cannot rotate
6. Worktable is running by lead screw and move on covered railways. The lead screw is soaked with oil in a closed cover againt dust and water(Patent product).that would extend the life time of screw and rail
7. There has automatic alarm if wire broken.
8.We equip a cooling system for diamond wire.it can detect water pressure.the machine will automatically stop in case of no water or insufficient water flow, to protect the diamond wire.
9,the up and down screws are covered with a short platic pipe to hold the grease and be oiled. protected with dust cover against dust and water

Technical Data

Note: All technical data can be customized to meet your specific needs.

Machine Application

FAQ

Q1. What about the lead time?
A: 20-30 days after receipt of deposit payment

Q2. How to proceed an order for the machine?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms all the characteristics about the machine and places deposit for formal order.
Fourthly We arrange the production.

Q3. Do you offer guarantee for the products?
A: Yes, we offer one years warranty to the machine, but you will enjoy life-time after-sales service for all our stone machinery.

Q4. What is the payment term?
A: 30% before production and 100% before shipment

Q5. Are you manufacturer or trader?
A: We are the manufacturer. We are the leading stone machine and stone tools manufacturer in China with 20+ years experience. We welcome you to our company to have an on-site check. We can also send you videos if you need.

Q6. What after-sales can you offer for your machines?
A: We offer all assistance you need to set up the machine and run the machine smoothly, like installation/operation manual and videos. We can also send our technicians on spot to help you with machine installation, setting, training, maintenance if you need.
